A worn auxiliary drive belt can turn a routine journey into an unexpected breakdown. On the Audi A4 B7, this relatively inexpensive component plays a critical role in driving engine accessories, and ignoring its condition may lead to charging problems, overheating on certain engine configurations, or loss of power steering assistance where the system is belt-driven.
The auxiliary drive belt, also known as a serpentine or poly-V belt, transfers rotational force from the crankshaft pulley to compatible engine accessories. Depending on the engine variant, these may include the alternator, air-conditioning compressor, and power steering pump. The exact belt routing and accessory arrangement differ between petrol and diesel engines, so identifying your specific configuration is essential before starting work.
Fortunately, replacing the belt is manageable for many experienced DIY enthusiasts when the correct procedure and safety precautions are followed. This guide explains how to inspect, remove, and install the poly-V belt on the Audi A4 B7, helping you prepare properly, avoid common mistakes, and recognize when professional assistance is necessary.
1. Understanding the Audi A4 B7 Auxiliary Drive System
The Audi A4 B7 was produced from 2004 to 2008, with different petrol and diesel engines, including naturally aspirated, turbocharged, and high-performance versions. Consequently, there is no single auxiliary belt specification or installation procedure that applies to every vehicle in this generation. Engine displacement alone may not be sufficient to identify the correct replacement part.
The auxiliary belt operates under continuous mechanical load. As the crankshaft rotates, the belt moves across a series of pulleys, transmitting torque to the accessories. A tensioning mechanism maintains the required belt tension, while guide pulleys help preserve the correct path and contact with each driven component.
Identifying the correct belt
Before purchasing replacement parts, establish your engine code, model year, and accessory configuration. Use the vehicle identification number (VIN), the engine identification label, or reliable manufacturer parts documentation to confirm the correct belt length, rib count, and specification.

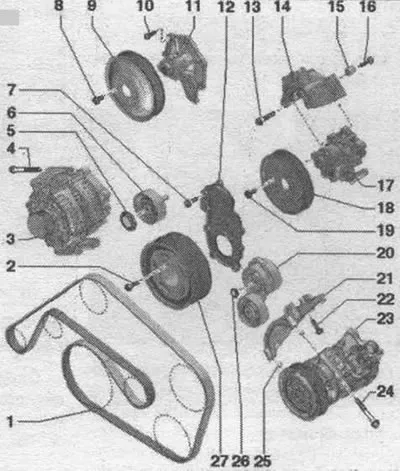

Pay particular attention to the following components:
- Crankshaft pulley: Supplies the mechanical drive to the auxiliary belt.
- Alternator pulley: Drives the alternator, which generates electrical power and charges the battery.
- Tensioner assembly: Maintains belt tension and compensates for normal wear and movement.
- Guide or idler pulleys: Direct the belt along the specified route.
- Other accessories: Depending on the engine, these may include the air-conditioning compressor and hydraulic power steering pump.
A belt that is too long, too short, or incorrectly profiled may slip, become damaged, or fail to drive an accessory correctly. Therefore, verify compatibility rather than relying solely on visual similarity.
2. Symptoms of a Worn or Damaged Poly-V Belt
Inspecting the belt before failure is considerably more practical than dealing with an unexpected loss of accessory drive. Although modern belt materials may not always develop obvious cracks, physical inspection remains important, particularly on vehicles with an unknown maintenance history.
Common warning signs include squealing during cold starts, noise when electrical or air-conditioning loads increase, visible fraying, missing ribs, contamination, and irregular belt tracking. A slipping belt may also reduce alternator output, causing a battery warning light or other electrical symptoms.
What to inspect before replacement
With the engine switched off and the key removed, examine the accessible belt surfaces using a flashlight. Look for damaged ribs, exposed reinforcement fibres, glazing, edge wear, and traces of oil or coolant. Contamination should be investigated because replacing the belt without correcting the leak may lead to premature failure.
Also inspect the tensioner and idler pulleys for visible damage, misalignment, or evidence of excessive movement. If a pulley appears damaged, the bearing feels rough when properly checked with the belt removed, or the tensioner does not maintain consistent pressure, further investigation is required.
Do not attempt to diagnose belt condition by placing your fingers near moving pulleys. Never touch or adjust the belt while the engine is running. If the belt is loose, severely damaged, or repeatedly slipping, avoid driving the vehicle until the cause has been identified.
3. Tools and Preparation for Belt Removal
Correct preparation reduces the risk of damaging components and makes the procedure easier to control. Before beginning, park your Audi A4 B7 on a level surface, engage the parking brake, switch off the ignition, and allow the engine to cool completely. Disconnect the battery’s negative terminal if required by the applicable repair procedure, taking account of any vehicle-specific electrical precautions.
The tools required depend on the engine and tensioner design. A typical setup may include:
- A suitable socket and ratchet set.
- The correct spanner, socket, or tensioner-release tool.
- A flashlight and inspection mirror.
- A camera or smartphone for recording belt routing.
- The correct replacement belt and, if necessary, replacement tensioner or idler components.
- Safety glasses and protective gloves.
Consult the workshop manual for your specific engine before loosening any components. Some configurations provide a designated point for rotating the spring-loaded tensioner, while others may require different access arrangements. Never assume that a tool fitting the tensioner pulley bolt is necessarily the correct tool for releasing its spring mechanism.
Record the belt routing
Before removal, photograph the entire accessible belt path. If necessary, make a simple sketch showing which side of the belt contacts each pulley. Ribbed belt surfaces generally run against grooved pulleys, while the smooth back may contact appropriately designed smooth pulleys.
Use the engine-specific routing diagram whenever available. This preparation is especially useful if the belt path is partially obscured or the vehicle has previously undergone accessory repairs.
4. Step-by-Step: Removing the Old Auxiliary Belt
Once the engine is cool and the belt path has been documented, locate the tensioner and determine the correct release procedure. On many spring-loaded systems, a suitable tool is used to rotate the tensioner against its spring force, relieving tension sufficiently to remove the belt. The direction of movement and tool engagement must be confirmed for the particular engine.
Step 1: Gain access. Remove any covers or air ducts that obstruct the belt, following the applicable workshop instructions. If additional components must be removed, confirm the correct sequence before proceeding.
Step 2: Release belt tension. Fit the designated tool to the tensioner mechanism and move it carefully in the specified direction. Maintain control of the tool because the spring stores mechanical energy and can cause sudden movement.
Step 3: Remove the belt. While the tensioner is held in its released position, slide the belt off an accessible pulley. Gradually return the tensioner to its resting position according to the service procedure, and then remove the belt completely.
Step 4: Inspect the exposed components. Examine the pulleys for misalignment, damage, contamination, and abnormal wear. Check the tensioner for smooth, controlled movement using the approved procedure, and investigate any roughness or excessive play in the idler bearings.
Do not force the belt off with a screwdriver or pry bar. Such methods can damage pulley grooves, belt edges, and nearby components. If access is difficult or the tensioner does not move as expected, stop and consult the engine-specific workshop documentation.
5. Installing the New Belt Correctly
Before installation, compare the replacement belt with the old component. Confirm the rib count, length, profile, and application against reliable parts information. A used belt may have stretched slightly or suffered damage, so its apparent length should not be the only basis for selecting a replacement.
Step 1: Follow the routing diagram. Position the new belt around the pulleys in the specified sequence. Ensure that every ribbed section aligns precisely with the grooves of its corresponding pulley.
Step 2: Engage the tensioner. Use the appropriate tool to release tension as required, allowing the belt to be placed over the final pulley without forcing it. Check the routing again before allowing the tensioner to return to its working position.
Step 3: Check alignment. Inspect the belt across every accessible pulley. No rib should sit outside a groove, and the belt must not be twisted, trapped, or routed behind the wrong component.
Step 4: Perform the final inspection. Confirm that the tensioner has returned to its specified operating position and that all removed covers, ducts, and fasteners have been correctly reinstalled.
If you need additional general background on Audi engine layouts and belt-related components, the reference website www.audimanual.ru can be useful. However, use documentation specific to the A4 B7 and your exact engine rather than assuming that instructions for another generation apply directly.
6. Final Checks and Common Installation Mistakes
Before starting the engine, remove all tools from the engine compartment and verify that no loose items remain near the pulleys. Check that the belt follows the correct route, all ribs are seated, and any components removed for access have been secured.
Start the engine only when the area is clear and it is safe to do so. Observe the belt from a safe distance without reaching into the engine compartment. Listen for abnormal squealing or knocking and watch for visible belt wandering, if the belt can be observed safely. Switch off the engine immediately if the belt moves incorrectly, a pulley appears unstable, or unusual noise occurs.
After switching off the engine, investigate any suspected alignment or tension problem before continuing. A newly installed belt should not require improvised tension adjustment where the vehicle uses an automatic tensioner. Persistent noise may indicate a contaminated belt, a failing pulley bearing, a defective tensioner, or an accessory problem rather than an incorrect belt alone.
The most common mistakes are selecting an incompatible belt, forgetting the original routing, misaligning the ribs, forcing the belt onto a pulley, and overlooking worn tensioner components. Avoiding these errors is essential for reliable operation and long service life.
Conclusion: Three Principles for a Reliable Belt Replacement
Replacing the auxiliary drive belt on an Audi A4 B7 is a practical maintenance task when you have the correct tools, suitable technical information, and a clear understanding of the engine’s accessory layout. Three principles deserve particular attention.
First, identify your engine code and verify the replacement belt specification before beginning. Second, release the tensioner correctly, follow the documented routing, and ensure that every rib is seated properly. Third, inspect the tensioner and pulleys instead of assuming that the belt is the only worn component.
These steps help reduce installation errors, prevent avoidable damage, and improve the reliability of the auxiliary drive system. Remember that belt routing and service procedures can vary substantially between engine versions, so the appropriate workshop manual remains your primary reference.
Ready to service your Audi? Identify your engine code, obtain the correct belt, and review the relevant repair procedure before starting. If you encounter a damaged tensioner, seized pulley, or uncertain routing, consult a qualified mechanic rather than risking further damage.
